Project Title:Radar Tank Gauging System
Required :The system needs to collect the level, temperature and pressure of the liquid and display them beside every tank then transmit the data to the control room.

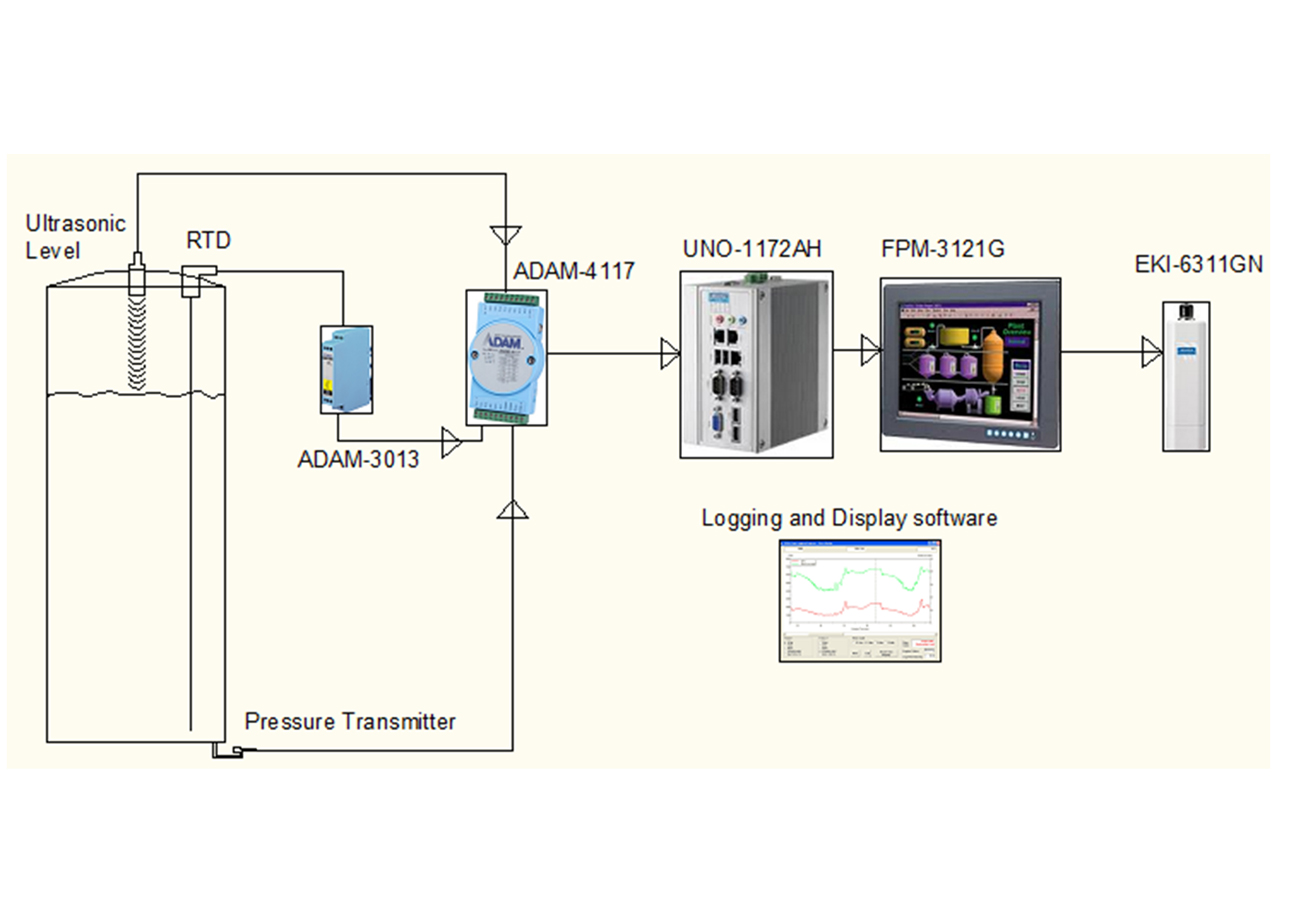

System Implementation :
|
Product |
Specification |
|
ADAM-4117 |
Robust 8-ch Analog Input Module with Modbus |
|
ADAM-3013 |
Isolated RTD Input Module |
|
UNO-1172AH |
Class I, Division 2 Certified Intel® Atom™ D510 DIN-rail PC with 3 x LAN,2 x COM, VGA, Mini PCIe |
|
FPM-3121G |
12.1" SVGA Industrial Monitor with Resistive Touchscreen, Direct-VGA, DVI and Wide Operating Temperature |
|
EKI-6311GN |
IEEE 802.11 b/g/n Wi-Fi AP/CPE |
|
PPC-157T |
15" Panel PC with Intel® Core™2 Duo Processor |
|
Software |
Logging and display software |
Conclusion:

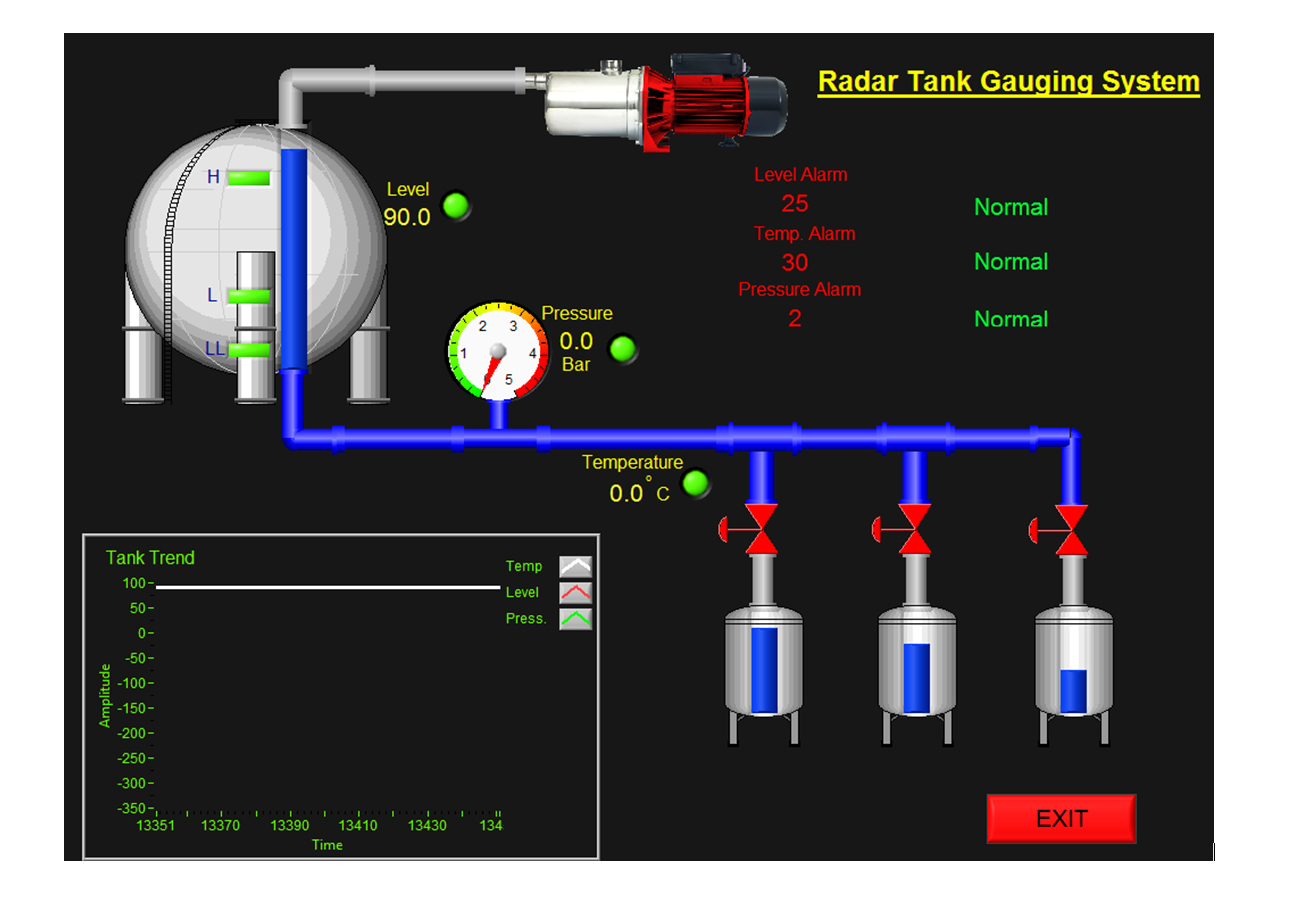

when we will collect the data by using ADAM-4117 , The data will be displayed on the software which is installed on the UNO.
Finally all the data of tanks will be transmitted to the control room.
