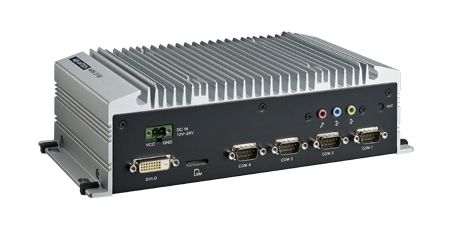

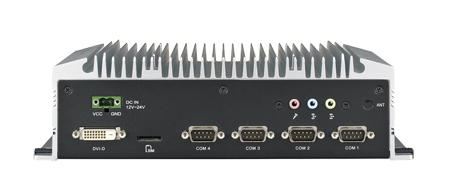

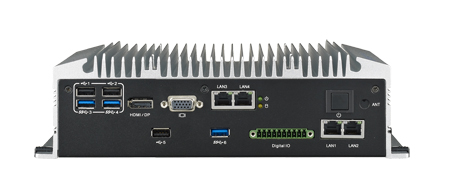

ARK-2150F

Product Files

3rd Generation Intel® Core™ i7 with 4 x GbE, Isolated DIO & wide range power Fanless Box PC

  • Intel® Core™ i7 processors + Intel QM77 PCH
  • 1 x DDR3/DDR3L SO-DIMM, support up to 8 GB
  • DirectX11, OpenGL3.1, OpenCL1.1, triple independent display: VGA + HDMI/ DisplayPort*+DVI-D
  • Supports Intel AMT8.0
  • Supports 4 x Intel GbE
  • Support 4ch digital input and 4ch digital output with 2.5KV isolation
  • Supports 3 x USB 3.0, 3 x USB 2.0, 4 COMs ports
  • Supports 1 x internal mSATA socket and 1 x 2.5" SATA HDD Bay
  • 12~24V wide range DC input with lockable connector
  • Supports iManager, SUSIAccess and Embedded Software APIs


BSMI  CCC Logo  CE Logo  UL
